How To Install a Snow Melting System

The Big Benefits of Snow Melting Systems

By Rob Robillard

In the Northeast, winter means shoveling and salting your walkway and stairs to keep your home accessible. The common theme amongst many a Northerner is that shoveling stinks!

I recently discovered one solution is to install a snow melting system. A heated walkway or driveway is a great way to dispense with snow melt chemicals and ensure that your driveway or walkway is always clear.

wet set” brick-and-mortar patio
The house in this project had an existing “wet set” brick-and-mortar patio that had to be demolished with a jackhammer.

The benefits of having a heated walkway are many. Probably the greatest is the safety of family and visitors in your home. If your walkways and driveways are heated, then ice and snow will melt, reducing the danger of slips and falls. And no more shoveling!

Wire mesh
Wire mesh is used to anchor the heating cable.

If you are considering installing a snow melting system, the best time for installation would be during a new home project or major landscaping changes to the property. If old, cracked walkways need replacing, that would also be an excellent time for this type of installation.

Compacted Sub-Base
The mesh is placed over the compacted sub-base, and sand will cover both the mesh and heating cable.

Snow Melting—Is It Worth It?

An electric snow melting system like the one featured in these photos is top-of-the-line and designed to be energy efficient. It acts fast to melt away the snow and prevent ice from forming. This system can be installed under concrete, bluestone, bricks, asphalt and in mortar underneath brick pavers.

Curve of the Walkway
The mesh is cut to fit the curve of the walkway.

Save time and effort. By installing heated driveways and snow melting systems in your sidewalks, walkways and driveways, you can save the time and effort of having to get up early on a cold winter morning or going out late at night in the frigid temperatures to shovel snow. With snow melting products and deicing solutions, you can stay comfortable inside and let the radiant heat do the work for you.

The Green Heating Cable
The green heating cable is routed along the wire mesh.

Environmentally friendly. Snow melting and deicing systems can be environmentally friendly, protecting your lawn and landscaping from damage caused by chemicals or snowplows.

Heating Cable
The heating cable loops back and forth in the walkway.

Protect your investment. Replacing or installing a new concrete, decorative concrete, asphalt, paver or stone drive-way or walkway is a substantial investment in your home. Unlike harsh snow melting chemicals or sharp plow blades, the gentle radiant heat produced by the system melts snow and ice without damaging the surface to help keep your driveway and walkways looking good for years to come.

Cable is secured to the mesh.
The cable is secured to the mesh with tie-wraps. I drilled through the brick wall in the photo for the electrical supply line.

Cost Comparison. Another thing to consider is the cost comparison of how much you pay for snow removal services and chemicals versus the operational costs of a snow melting system. After the initial investment, costs of operating the system are minimal. On the average, the operating cost per snowfall event is about the same as paying someone to remove the snow. However, with a snow melting system, the pavement is left clear and dry. Removing snow with a shovel or machine can leave behind a thin layer of snow that could refreeze, resulting in hazardous conditions and the need for the additional application of salt or other snow melting chemicals.

A rotary hammer
A rotary hammer bores through the brick to route the electrical supply.

Safety. With a snow-melting system, not only can you reduce the risk of slips and falls, you can also reduce the risk of bodily injury or strain from shoveling heavy snow.

Electrical Conduit
The supply line is protected with electrical conduit.

A snow melting system also gives you peace of mind, knowing that your family, friends and visitors—everyone from the mail carrier to loved ones who use wheelchairs—can safely move to and from your home.

The Heating Cable
The heating cable is installed and ready for the sand bed.

Steep driveways can also be made safe to traverse in snow and ice conditions. These systems also help protect your pets too, by safely clearing the snow and ice without harmful chemicals that can hurt their paws.

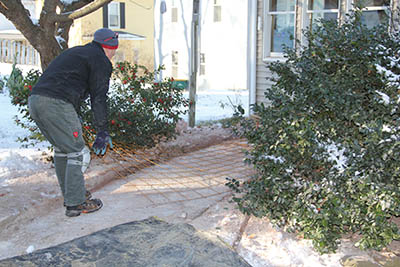

Frost Blanket
This frost blanket prevents the sand from freezing overnight.

Types of Radiant Snow Melt Systems

There are two systems typically used outdoors when heating walkways and driveways: electrical heating cable; and hydronic heating piping.

Sand Bed
A sand bed is leveled over the mesh and heating cable, much like a flexible-base patio.

A hydronic heating system uses copper tubing or cross-linked polyethylene (PEX) with a liquid treated with antifreeze to warm the driveway or walkway. This glycol-based solution is heated with a boiler, operated with either manual or automatic controls.

Paver Stones
The paver stones are carefully laid onto the sand bed.

On this walkway project, electric heating was the only option and also the most cost effective to install. We chose the WarmlyYours Premium Snow Melting System. This system was custom-designed for my project and came complete with all the cable, controllers and snow sensors needed for a quality snow melting system.

Border pavers
Border Pavers help to give the walkway a finished look.

Installation under Bluestone Pavers

On this project, the home-owner had a wood stoop porch and a cobblestone front walkway, which must have been a complete nightmare to shovel. They decided to tear out the wood stoop and cobbles to replace them with a fieldstone stoop with a bluestone top and bluestone walkway—all heated.

WarmlyYours designs durable, high quality indoor heating and outdoor snow melt products. The company’s heating cables are designed for concrete slab floors of new homes, outdoor driveways, walkways, stairs and patios. The product is well suited for large areas like basements, garages, additions and driveways.

Before starting my project

I gave my customer service representative the exact project dimensions, and they provided me with a custom detailed installation drawing.

The snow melt system I chose for this project comes in mats or loose cable in specific lengths tailored to an individual project.

Completed new landing
Here is the completed new landing, after polymeric sand has been swept into the paver joints and the surface has been rinsed.

For my project I used 251 ft. of loose cable, which I looped and spaced approximately 3 inches apart. The system is CSA-Certified for outdoor use in Canada and U.S. and is offered in 120V or 240V configurations. It is rated for 3000 watts, 240 volt and 12.5 amps.

Warmly Yours sent the following as part of the premium system:

  • 251′ of snow melt heat cable
  • Relay panel
  • Premium snow melt    control panel
  • Snow sensor
  • Temperature sensor

The Heating Cable is comprised of a dual multi-strand heating element with a primary insulation of Fluoropolymer. The insulated core is protected with a woven metal braid and an outer jacket of PVC, EPR or a Zero Halogen Polyolefin-based compound to make it sturdier and to provide corrosion protection.

These cables are terminated with 20-ft. (6.1m) long standard cold leads. The cold lead is obviously not heated and is used to enter into the building and attach to the control panel. The hot and cold junction is uniquely designed to make it 100 percent foolproof.

The accompanying project photos show the basics of installing the systems.

Patriot Place
The occupant test-drives the new walkway in his wheelchair. The pavers for this project are called “Patriot Place” because they were leftover from the New England Patriots’ stadium.

Whatever your reason, a snow melting system for your walkways or driveway can make any snowfall event, big or small, hassle-free. You can spend less time worrying about digging out and more time with friends and family doing things you enjoy.

Editor’s Note: Robert Robillard is a remodeling contractor in Concord, MA, and editor of AConcordCarpenter.com.
