Nail Guns for the DIY’er

With a nail gun, you can aim a nail for perfect placement and stop worrying about bent fasteners or hammered thumbs. Nail guns also spare your elbow a lot of wear and tear; they drive nails with a single pull of the trigger, which saves tons of time compared to making multiple hammer swings for every nail in the project. Do I recommend them for a serious DIY’er? You bet I do.

But which nailer makes sense for you? With a range of sizes and applications, here’s a rundown of your choices.

Air Nailers

If you already own an air compressor and air hose, then a pneumatic nail gun will give you the most bang for the buck. If you don’t own a compressor and you plan on handling your own home improvements, then a compressor system can be a sound power-tool investment. One of the biggest benefits is that air tools don’t have their own motor. With cordless electric tools, you have lots of small motors that can wear out, batteries to recharge, and rechargers to store. But with air tools, you have a single powerful motor that runs them all, so they can perform for years without failure. This makes the tools lighter, more compact and easier to handle—with less moving parts to malfunction. For this reason, air tools in general are known for their long-lasting value.

As far as nail guns, you’ll also find the widest range of applications to be powered by air. Choose from pin nailers, brad nailers, finish nailers, framing nailers and even roofing guns all driven by air power. You can add to your air nailer collection as future projects demand.

Pneumatic Framing nailers require a good deal of air power to function properly. An air compressor’s ratings for pressure (measured in pounds per square inch, or PSI) and volume, (measured in cubic feet per minute, or CFM) should be equal to or greater than the requirements of the nailer, so check the specifications of both.

It is important, however, to match the nail gun with an appropriate air compressor. The compressor’s ratings for pressure (measured in pounds per square inch, or PSI) and volume, (measured in cubic feet per minute, or CFM) should be equal to or greater than the requirements of the nailer, so check the specifications of both. The requirements for the nail guns vary with their size and application, so an air compressor that has the capacity to power a brad nailer might not have enough power for a framing nailer. For example, the requirements for brad nailer average 0.3 CFM at 90 PSI, whereas the requirements for a framing nailer average 2.2 CFM at 90 PSI.

Note: If you plan to run other air tools simultaneously with the nailer, you should also make sure the compressor can handle the combined load.

Most pneumatic nail guns will require the nose to be pressed against a surface to fire. This is a safety feature so that the gun is not accidentally shot. There are usually two choices for operation: bump fire and sequential. Sequential requires you to pull the trigger each time you want to shoot a nail. Bump fire eliminates the trigger and fires each time the nail gun is pressed up against a surface, which can fire multiple nails very quickly.

The nails for nails guns are collated in strips or coils. Coil nail guns, like this Senco roofing nailer, allow for less reloading because they hold more nails. If you’re a professional with a big job, coil nailers can be a timesaver. Most DIY’ers choose a strip nail gun.

Cordless Finish Nailers

As much as I love air tools, I do a lot of nailing, so it’s nice to have a cordless option that’s ready to grab and go.

An air compressor can be heavy and bulky, and even the portable models can be cumbersome to move around. The air hose can sometimes get in your way or become tangled, and you’re limited by the reach of the hose as well as the availability of an electrical power supply. Plus, although an air-driven nailing system is an excellent setup for a worksite, sometimes you have a simple repair around the house that requires only a few nails, and then you’re finished. It can be a chore to drag out a hose and compressor for small, quick jobs.

Paslode’s Positive Placement Nailer has a special guide tip designed to shoot the nails right into the tiny holes of metal construction hardware without the imprecise impact of a hammer – a real timesaver.

In these situations, a battery-powered cordless nailer gets the job done without the extra baggage. This cordless category is populated primarily by brad and finish nailers (15 to 18 gauge) powered by lithium-ion batteries.

A number of reputable manufacturers make them, including Paslode, Bosch, Dewalt, Hitachi Power Tools, Senco, Ridgid, Ryobi and Porter-Cable.

Recently, I’ve been using the Porter-Cable 20V Max Lithium Ion 18-gauge Cordless Brad Nailer to install trimwork and build patio furniture. It’s a lightweight (5.1 lbs), well-balanced and solidly constructed gun that’s a good fit for a DIY’er. It has a fastener-length capacity of 5/8 to 2 inches and a magazine capacity of 100 nails. The nailer is capable of driving up to 450 nails per charge using a 1.5Ah battery and up to 1,300 nails per charge using a 4.0Ah battery (sold separately).

The Porter-Cable 20V Max 18-gauge Cordless Brad Nailer is a good fit for a DIY’er – one i’ve recently been using for trim carpentary and building patio furniture.

It has several tool-free features including a tool-free jam release, tool-free depth adjustment wheel, and a tool-free “stall release lever” that resets the driver blade after a nail jam to reduce downtime.

Cordless Framing Nailers

To drive a 3-1/2-in. framing nail through solid lumber requires a little more oomph than a battery delivers alone. To cut the hose for a framing nailer requires a combination of both battery power and gas fuel rods. When the nose of the gun is pressed to the work surface, flammable gas fuel is released into the combustion chamber where a fan mixes it with air. When the trigger is pulled, a spark ignites the gas mixture, creating combustion that drives the nail.

The Paslode Cordless Framing Nailer is generally considered the flagship of this class of nailer.

Sounds cool right? They are; in fact, every pro builder I know is in love with these things. But that coolness comes at a price, as the flagship tool in this category—the Paslode Cordless Framing Nailer—can run $300 to $400, depending on model. Whether or not the cost of the tool makes sense for you depends on how much nailing you do (and how much you just love owning cool tools). I will say this: The reason all those pros are so in love is because the cordless framers offer all the performance of an air-powered tool without the hassle of the extra machinery, which means time saved on the job.

To a contractor, time can equal money, and that saved time will soon justify the cost of the gun.

For a DIY’er who’s wondering if such a purchase would prove to be a sound investment, I recommend first determining the scope of your upcoming framing projects and then consider how much time and hassle you’ll save by investing in a nail gun, cordless or otherwise. And then factor in how much that time is worth to you…

Cordless framing nailers are powered by a combination of lithium-ion batteries and gas fuel rods.

As for me, I’m hooked. I have experience with a few generations of the Paslode Cordless Framer, and the strides the company has made in the tool’s runtime and efficiency are truly remarkable. The latest model, the CF325XP Lithium-Ion 30-deg. Framing Nailer, delivers 15 percent more power than its predecessor. With a 7.4V lithium-ion battery, it delivers up to 9,000 shots per charge. For a full battery, recharge time is 1-1/2 hours, but a 2-minute quick charge will give you up to 200 extra shots! The framer is lightweight at only 7.2 lbs., and its compact design fits between 16 in. on-center studs, joists and roof trusses. Plus, for those of you in a cold climate, the new Paslode Framing Fuel with All Season Formula lets you keep working in temperatures down to 14 degrees F when compressor hoses are freezing.

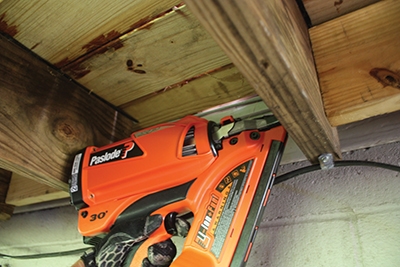

Paslode’s latest model CF325XP has a compact design that fits between 16″ on-center studs, joists and roof trusses.

For “extreme” DIY’ers and pros on the go who have heavy-duty projects ahead, a cordless framing nailer is a worthy investment … and quite possibly your next favorite tool.

Side Note

Brad vs. Finish Nails

To the novice DIY’er, a brad nailer and finish nailer might appear to be used for the same jobs, but each type of nail gun actually serves a different purpose. A brad nailer is designed to run 18-gauge, fine wire brad nails. These small nails are very hard to drive manually without bending the nails. Once they’ve been driven into wood, brad nails are nearly invisible to the naked eye, reducing (or eliminating) the need for wood putty to conceal the head. The disadvantage to using brad nails is that they don’t have much holding strength for heavier carpentry projects, such as large crown molding or baseboards.

For larger, more bulky wood trim, you will need to use a finish nailer, which drives 15- or 16-gauge finish nails that are slightly larger than a brad nail, giving them better holding power. However, because of the fastener’s larger diameter, you will need to conceal the nail heads with putty. Plus, the thicker finish nail is more likely to split the wood than a brad.

In a perfect world, a DIY woodworker will have both nailers on hand for projects, but if you need to prioritize, then you should probably start with a brad nailer, which can handle most trimwork and light-duty projects with minimal touchup.

Written by Matt Weber
