Easy-to-Build Workbench

Cabinet, Garages, Woodworking - Directory January 7, 2009 Matt Weber


art_60742_ezbench1

Here’s a simple weekend project: My workshop needed a sturdy, flat work surface that I could access from all sides without a wall in my way, so I built the rock-solid workbench pictured here. This beefy bench is constructed from 2-by-6′s, 2-by-4′s and 2-by-2′s. I first ripped the rounded edges off the lumber, so each 2-by-4 measured 3 inches, and each 2-by-6 measured 5 inches. Then I assembled the bench according to the diagram shown below, sizing the height for a 6-foot tall person to work comfortably, but you can adjust the height of your bench accordingly.

I used 2-1/2-inch No. 8 wood screws when nailing through 2-by lumber into the face of another 2-by board. However, I used 3-inch screws when nailing through 2-by lumber and into the edge of a board.

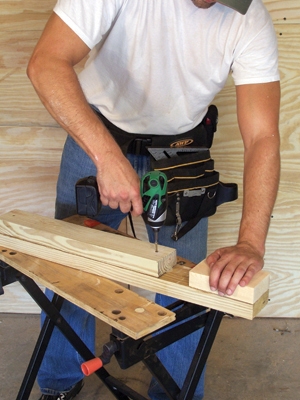

ezbench2 Easy to Build Workbench

You have the option of making the legs from 4-by-4 lumber and notching them as necessary. However, I made them from 2-by-4′s, spacing the blocks to accept the table top and lower shelf.

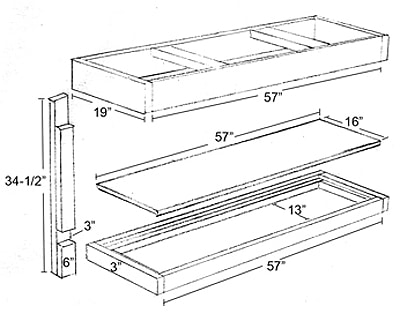

ezbench dia Easy to Build Workbench

The bottom shelf is supported by 2-by-2′s attached to the inside of the lower box frame. Make the bottom shelf by cutting your sheet material of choice to fit flush into the lower frame, and fasten to the 2-by-2′s with 1-5/8-inch wood screws.

ezbench3 Easy to Build Workbench

The sturdy top is nothing more than a solid-core door from Lowe’s, centered on the table frame and screwed to the 2-by-4 brackets from beneath. You can also construct the table from doubled sheets of plywood or even build a butcher-block top—you’ve got plenty of options to customize this table in any way that better suits your needs.
