Cedar Patio Benches

This easy-to-build bench can be used on your patio or deck—or anywhere.

By Matt Weber

When I build outdoor furniture I want it to last.

I also want to spend as little time maintaining the furniture as possible. That’s why I often choose cedar as my outdoor building material. In my area of the country cedar is more expensive than treated lumber, but it has the benefit of containing natural oils that act as preservatives to help the wood resist decay and insect damage. Cedar is also a dimensionally stable wood that lays flat and stays straight, which makes it easy to build with, and you can depend on the boards to hold their shape.

These cedar benches became a project because as my family has grown I’ve noticed a lack of seating on our back deck. I noticed the same problem on my parent’s paver patio. To solve both problems, I decided to whip up a couple simple benches for people to park on. These benches are fairly easy to build, and you get to exercise some of your favorite tools: a table saw, a miter saw (or handheld circ saw), a router and a nail gun.

Materials

If you’re like me, you keep your eyes peeled for building materials to squirrel away for a rainy day. I ended up with a few scrap cut-offs of 6×6 cedar posts. They’d been thrown into a dumpster by a work crew during the construction of a screened porch. I rescued them, and just a few months later found a good use for the wood.

Cedar Makes an excellent choice for outdoor furniture because its natural oils act as preservatives.
Cedar Makes an excellent choice for outdoor furniture because its natural oils act as preservatives.

On my table saw, I ripped the 6×6 chunks right down the middle to create four equal 3×3 boards. Not only did I keep this perfectly usable wood out of a landfill, I saved money on not having to purchase a new 6×6. The 3×3 boards would serve as the legs of the benches, and I cut them to equal length on my miter saw.

I ripped the 3x3 legs from a left-over 6x6 cedar post.
I ripped the 3×3 legs from a left-over 6×6 cedar post.

Aside from the 3×3 legs, all the other wood components are cut from 1×4 cedar boards, which should simplify your shopping experience. (Note: “1×4” is a nominal designation, and the 4-in. wide cedar boards I purchased from my local Lowe’s measured only 5/8 inch thick, so the following cut list reflects this thickness).

Cut List per Bench

  • Front and Back: 2 pcs., 40″ 1×4
  • Sides: 2 pcs., 16-3/4″ 1×4
  • Legs: 4 pcs., 15-3/8″ 3×3
  • Slats: 11 pcs., 18″ 1×4

Cedbench_diagram

After making the legs, I cut the bench’s sides, front, back and slats to length on a miter saw. Although you can measure and cut each board with a handheld saw, I suggest setting up stops on a miter saw to cut each matching board to the exact same size. Not only does setting up stops increase productivity by eliminating the need to measure and mark, but it also ensures the boards are a consistent size, which is critical when assembling a square frame.

Routing

The seat of the bench is made of 1×4 slats. I wanted the edge of the seat to feel comfortable so I used a router with a round-over bit to ease the sharp 90-degree edges into a smooth “quarter-round” profile. This is most easily accomplished by mounting the router in a router table and running the ends of the slats over the bit. You’ll get the best results and less tear-out by rounding the ends with multiple shallow passes over the router.

Boost production by setting up stops on your miter saw to cut matching pieces to the same size.
Boost production by setting up stops on your miter saw to cut matching pieces to the same size.

Once you’ve rounded both ends of every seat board, use a sanding block to smooth the end grain.

Test the Fit

To make sure this project was coming together as planned I preassembled the parts without fasteners to test how they fit.

I used a round-over bit in a router table to ease the ends of the seat slats.
I used a round-over bit in a router table to ease the ends of the seat slats.

To determine the layout of the seat boards, I began with a 1×4 slat flush to one side of the bench and spaced each succeeding slat 1/2 inch apart, using a 1/2-in. dowel to gauge the distance. What I discovered is that the 1/2-in. spacing resulted in an oddly sized slat at one end. I then tried centering a board on the bench, then working outward toward the sides. This resulted in slats either overhanging the sides conspicuously, or I could rip the slats on each end into “skinny” slats so they fit flush over the bench frame.

Use a sanding block to smooth up the routed edges.
Use a sanding block to smooth up the routed edges.
Sand all wood surfaces smooth in preparation for staining.
Sand all wood surfaces smooth in preparation for staining.

I had the option to expand the gaps between slats but reasoned that any spacing greater than 1/2 inch would cause the boards to cut into the thighs of the people sitting on them, resulting in an uncomfortable bench. I decided instead to tighten the spacing to 1/4-inch between each board, which determined that I needed 11 slats for each seat (rather than the 10 per bench I had originally cut). Note: This 1/4-in. layout resulted in end slats that slightly overhang the bench by about 1/4 inch on each side, but my wife and I decided we liked this look, so we stuck with it.

Assemble the components to test the fit. By doing this, I learned that 1/4" spacing worked better between the seat slats than the 1/2" spacing shown in this photo.
Assemble the components to test the fit. By doing this, I learned that 1/4″ spacing worked better between the seat slats than the 1/2″ spacing shown in this photo.

Staining

Sand all rough wood surfaces smooth before applying stain/sealer.

I suggest pre-staining all bench components prior to assembly. Staining/sealing the individual pieces grants you access to all sides and edges, which is difficult or impossible to achieve once the bench is built. Although most people won’t generally view the underside of the bench to know if it’s been stained, a thoroughly applied preservative will better protect it from the outdoor elements.

Pre-stain all components.
Pre-stain all components.

For this project I selected an exterior-grade stain/sealer in a “redwood” color tone. I brush-applied the stain and allowed it to dry overnight before assembling the benches.

Assembly

To fasten cedar, you need to use coated fasteners or stainless steel to prevent iron-staining of the wood. I used a stainless carriage bolt, nut and washer on each leg, as well as some finish nails and pin nails. However, I used the nails primarily as temporary fasteners to hold the assembly together as the polyurethane glue dried. (To minimize fastener holes, I used Gorilla Glue at every joint.)

Assemble the frame upside down on a sturdy, flat work surface.
Assemble the frame upside down on a sturdy, flat work surface.

Set up a flat, sturdy work surface and assemble the bench frame upside-down. I used a framing square to help guide placement of the seat frame (front, back and sides), and secured the four legs at each corner with clamps.

cedbench10
Mark the front and back boards at the midpoint where they overlap the legs.
Drill a hole through both mating boards for the carriage bolt.
Drill a hole through both mating boards for the carriage bolt.

I then used a 5/16-in. brad-point bit to drill through the midpoint of where the front/back piece overlaps each leg. Drill completely through the legs and the mating board.

Apply high-quality polyurethane glue to all mating faces.
Apply high-quality polyurethane glue to all mating faces.
Insert the carriage bolt through the front/side boards and the legs and then tighten with a nut and washer.
Insert the carriage bolt through the front/side boards and the legs and then tighten with a nut and washer.

Before fastening I removed each leg and applied Gorilla Glue to the mating faces of the boards. Use a damp rag to first moisten the wood surfaces, which will help activate the polyurethane adhesive when applied. I then replaced the legs and threaded a 5-inch long, 5/16-in. stainless steel carriage bolt through the hole, and fastened the threaded end with a washer and nut.

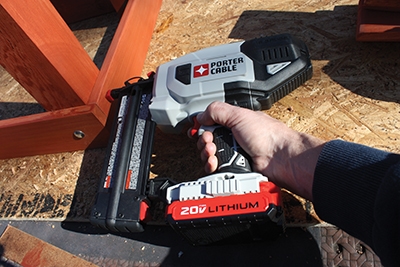

I shot finish nails into the side of the legs to hold them square while the glue dried. This cordless finish nailer from Porter-Cable made the job a snap.
I shot finish nails into the side of the legs to hold them square while the glue dried. This cordless finish nailer from Porter-Cable made the job a snap.
Begin installing the slats by centering the first one over the bench frame.
Begin installing the slats by centering the first one over the bench frame.

After double-checking that the legs were perfectly square and plumb to the bench frame, I fired two finish nails through the side boards to hold the legs in place while the glue dried. This same assembly process applies to each leg.

I glued each of the slats in place, but also used a pin nailer to temporarily hold them securely while the glue dried.
I glued each of the slats in place, but also used a pin nailer to temporarily hold them securely while the glue dried.

After the frame is assembled and the glue has dried, flip it over and fasten on the seat slats. They’re designed to fit flush over the frame from front to back. I began with the first board centered over the midpoint, and spaced the remaining boards using a strip of 1/4-in. hardwood as a spacing guide.

A scrap strip of 1/4 in. hardboard made a good spacer for installing the slats.
A scrap strip of 1/4 in. hardboard made a good spacer for installing the slats.

I used Gorilla Glue to fasten each slat, but used pin nails to hold the slats in place while the glue dried. The bench is complete once you fasten your last slat. Allow the glue to dry, and then have a seat.

Here are the two finished benches.
Here are the two finished benches.
