Crown Molding in Review

Construction How-To, Finish Carpentry, Mantels. Trim, Molding, Trim Carpentry November 2, 2008 Matt Weber


art_60694_1a1a1CrownReviewTTLead



Crown molding can add greatly to a room’s overall décor, especially when it’s installed correctly. But a molding installation with gaping corner joints only adds as much style as a ragged fedora. Although precision cutting and gluing inside miters can help the joint stick, the expansion and contraction of the molding material is a powerful force. Nine times out of ten, miter joints will open. To prevent this, many carpenters bypass cutting miters on inside corners in favor of coped joints. A coped piece of molding has the end “carved” in the shape of the molding profile so it fits over the intersecting strip of molding like a puzzle piece. Coping the joints hides the problem of inside corners that tend to spread open.

1a1a1CrownReviewTT01 Crown Molding in Review

First step is to mark the framing locations on the wall and ceiling.

Planning

Fortunately, with ceiling trim there are generally no doors or other room openings with which to contend. This simplifies the layout somewhat, but you should plan the layout according to the locations of the coped joints.

Fypon%20blog%20banner Crown Molding in Review Crown Molding in Review

In a basic square-room installation, the first piece of crown should be installed on the wall opposite the door with two square-cut ends butted tightly to the adjacent wall surfaces. Then install the adjacent pieces of molding, each having one coped end that nests against the square-cut first piece, while the other end is cut square to butt against the opposite wall. This means that as someone walks into the room, they are presented with the best face of the crown joints on the opposite side of the room. The final run of molding will have two coped ends, but these are at the least noticeable locations in the room.

1a1a1CrownReviewTT02 Crown Molding in Review

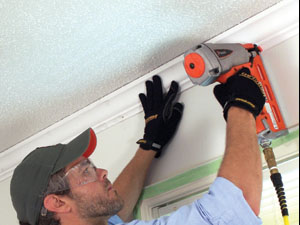

A pneumatic nailer can speed up the fastening process.

Before installing the first piece, use a stud finder and pencil to mark the wall studs and ceiling joists around the perimeter of the room. Mark just outside the molding location so you’ll know where to drive the nails.

1a1a1CrownReviewTT05 Crown Molding in Review

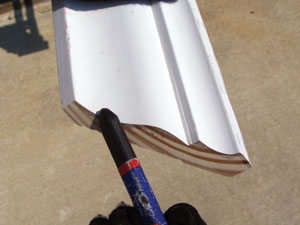

When making a cope joint, begin by tracing the molding profile with a pencil for better visibility.

First Run

Requiring no angled cuts, the first piece of molding is the easiest to install. Simply make a 90-degree cut to trim the molding to length, using a powered miter saw or handsaw and miter box. Use finish nails to fasten through the molding and into the wall and ceiling framing. A hammer and nail set will suffice, but be careful not to bang up the molding profile. A better tool for the job is a pneumatic nail gun, such as the Paslode 16-gauge angled finish nailer shown, which frees up one of your hands, affords greater nailing precision and really picks up the pace of the installation.

1a1a1CrownReviewTT06 Crown Molding in Review

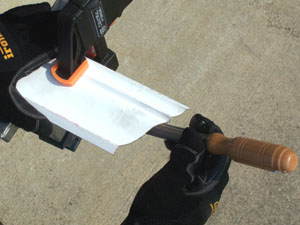

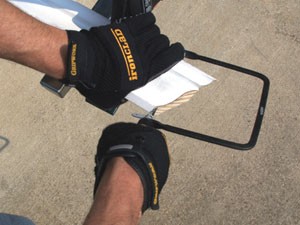

Above and Below: Back-cut the mitered piece with a coping saw, staying 1/16″ from the profile edge. Use a variety of files to create a shaped edge that will be the only point of contact with the intersection piece.

1a1a1CrownReviewTT07 Crown Molding in Review

Learning to Cope

The intersecting ends of the next two adjacent molding strips is where you’ll begin the coping operation. The idea is for the intersecting cut to duplicate the molding profile, or shape, so it nests tightly against the face of the adjoining molding for a nearly perfect fit.

Measure the wall and mark your measurement onto the intersecting end of the second piece of molding. Cut a 45-degree inside miter at the mark. Remember, when cutting crown molding on a miter saw, you typically have to cut it upside-down and backwards, so the saw’s base represents the ceiling and the saw’s fence represents the house wall. With 45-degree inside corners, the cut should be made so the lower, longer point of the molding (when positioned on the wall) meets the mark you made for the molding strip’s overall length. (See the “Crown 45” sidebar for a handy tool that simplifies this cutting process).

1a1a1CrownReviewTT08 Crown Molding in Review

The coped piece of molding should nest perfectly against the square-cut first piece. Fasten securely and then seal all seams with caulk.

1a1a1CrownReviewTT09 Crown Molding in Review

Next, run a pencil along the mitered edge, marking the edges and curves of the profile for better visibility. Clamp the molding securely and use a coping saw to back-cut along the pencil line, following the contours of the profile. Keep the blade 1/16 inch to the waste side of the cutline. Then use a file to clean up the profile, revealing a shaped edge that will be the only point of contact between the intersecting molding pieces. This should create a socket that fits snugly over the face of the first piece. After checking for fit on the wall, cut the uncoped end square and butt it against the far corner to meet another coped piece on the third wall. Repeat this process for the molding strip that intersects the first piece on the opposite wall.

1a1a1CrownReviewTT03 Crown Molding in Review

Cut scarf joints to join straight pieces of molding in a continuous run.

1a1a1CrownReviewTT04 Crown Molding in Review

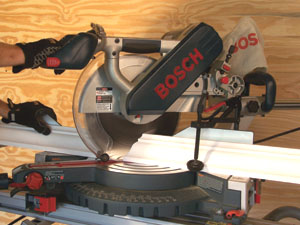

Position the molding upside-down and backwards when cutting on a miter saw.

Scarfing

The final molding strip on the fourth wall, above the door, is coped at both ends. Admittedly, it is difficult to successfully fit a piece of molding that is coped at both ends—even for a pro. To make this easier, you can fit each coped corner on a separate piece of molding and cut a scarf joint to join the two pieces in a continuous run. In fact, use a scarf joint anytime you need to join two pieces of molding along a straight run of the wall. To make a scarf joint, cut opposite miters on the two molding pieces and nail the joint securely over a wall stud. After fastening the first half of the run over the stud, cope the corner end of the second half and then cut a supplementary miter, making the strip just a little too long. Test-fit this last piece and then cut way the excess on the miter until it fits snugly into the scarf joint with no visible gap.

1a1a1CrownReviewTT10 Crown Molding in Review

Finishing

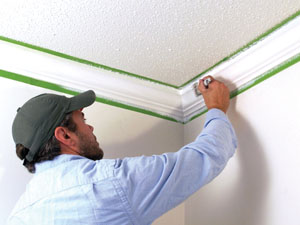

With the molding solidly fastened in place, fill the nail holes and seal seams with a high-quality caulk or wood filler. The molding used in this material was pre-primed pine. If you’re painting the molding, it improves paint adhesion to sand the caulk after it dries and to “spot” prime the seams and nail patches. Once the primer dries, simply mask off the molding and finish up with a couple of coats of you’re favorite interior paint—we recommend using the high-gloss variety.

Editor’s Note: Thanks to Lowe’s Home Improvement Store for supporting this article. Visit www.lowes.com.

Check Out More EHT Crown Moulding Stories

For a Look at How to Install Basic Crown Molding, click here.

For a look at Professional Cutting Advice for Crown, click here.

For 13 Pro Tips for Crown Molding and Trim, click here.

For a Look at All Types of Molding, from Crown to Base and even Elaborate Built-up Profiles, click here.

EasyCrownCut2000 Crown Molding in Review

Side Note:

Easy No-Nail Crown Molding

Easy Crown Molding from EZAPEEL provides a simpler way to install crown to enhance a room’s décor. It takes the guesswork out of the installation process and allows DIY’ers the ability to trim out a 17-by-17-foot room for just $49.95. Unlike wood or composite molding, the material can be cut with household scissors. And instead of using nails, installation is a simple peel-and-stick procedure in which the installer removes tape from the molding to reveal an adhesive backing. Each kit contains 16 pieces just over 4 feet long, which are pre-mitered for easy corners. Just press the molding tightly to the wall and ceiling to adhere it in place, overlapping the seams at each joint. No measuring is necessary. The molding can be painted and caulked after installation. Also, check out the company’s Easy Door Crown system. Visit www.ezapeel.com or call 1-888-EZAPEEL.
